Sriram,
Sure right. I think the figure is OK as it is. The possible additional clarification would be in text or just the placement of the figure only in the sections discussing the mappers.
- Jouni
From: Devi, Sriram [mailto:sriram.devi@xxxxxxxxx]
Sent: Tuesday, November 24, 2015 8:22 AM
To: Jouni Korhonen
Cc: stds-1904-3-tf@xxxxxxxx
Subject: RE: RoE protocol overview figure
Jouni,
Since I marked the CPRI mapper as optional, I thought I covered non-CPRI case as well.
Please let me know how I should modify the figure for non-CPRI case.
Thanks,
Sriram
From: Jouni Korhonen [mailto:jouni.korhonen@xxxxxxxxxxxx]
Sent: Tuesday, November 24, 2015 8:11 AM
To: Devi, Sriram
Cc: stds-1904-3-tf@xxxxxxxx
Subject: RE: RoE protocol overview figure
Thanks Sriram,
I would emphasize here that the scope of this figure is CPRI mappers. For non-CPRI traffic the protocol stack above RoE Frame would look different.
- Jouni
From: Devi, Sriram [mailto:sriram.devi@xxxxxxxxx]
Sent: Tuesday, November 24, 2015 7:41 AM
To: Jouni Korhonen
Cc: stds-1904-3-tf@xxxxxxxx
Subject: RoE protocol overview figure
Hi Jouni,

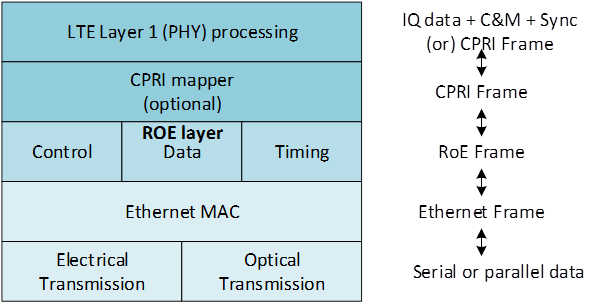

I created a high level RoE protocol overview figure which I would like to share.
Thanks,
Sriram
