Figure 5-2 and 5-5 updates (my action item)

[<mxhajduczenia@xxxxxxxxx>]

Dear colleagues,

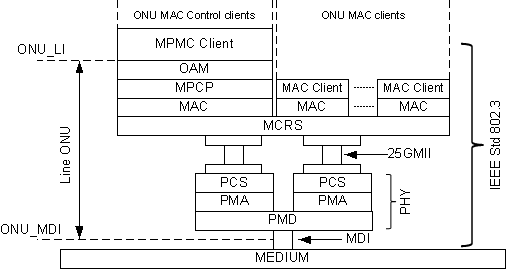

Per comment #10 against D0.2, I took an action item to update Figure 5-5 to match 802.3ca architecture. Below is the image and attached is the Visio source file for it.

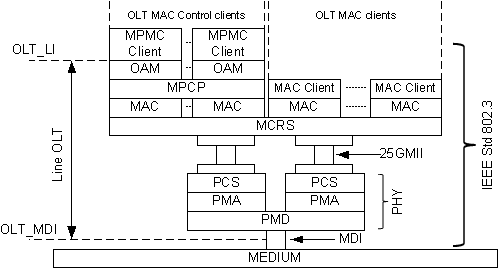

As a bonus, I also updated Figure 5-2 that needed the same kind of processing.





Any comments would be welcome



Regards



Marek

---
