Thank you, JC.
Yes, given the sizes of emerging keys and signatures, pacing the transfer by the receiver would be useful.
It probably would be a cleaner solution to specify a generic file transfer from the start. But it was specified only for the FW image transfer and the OLT and ONU state diagrams are very big and combine the download, verification, and activation functionalities all together. Extracting the download portion of the state diagram into a separate generic file transfer sub-clause is a lot of work. Also, as you said, we will need to specify a reverse process for file retrieval. Unless we have a strong reason to mess with the software download, I’d leave it alone. (But there might be such a reason. I will clarify in a separate email.)
Certificate download into ONU:
The easiest fix for pacing the transfer is to specify that ONU has to acknowledge every eOAM_Certificate_Request by a separate eOAM_Certificate_Response, and that the OLT shall not issue a new eOAM_Certificate_Request, until the previous one has been acknowledged. To pace the downstream transfer, the ONU would delay the response for up to 1 second (OAM timeout). However if the pause needs to be even longer, ONU should send an eOAM_Certificate_Response with code “Busy”. Then to resume transfer, ONU would send another eOAM_Certificate_Response with code “Ready”. When the OLT indicates that it has sent the last segment, the ONU sends a response containing the summary of the whole operation, i.e., ActionStatus and CertificateStatus.
Certificate retrieval from ONU:
Pacing the upstream data during the certificate retrieval can be done in a few ways. One way is to burden the DBA with pacing the MLID grants. But it probably would be better if we make US and DS transfers more or less symmetric. That means the OLT would request each block separately, and the ONU would only send one block (one eOAM_Certificate_Response) per each block request (eOAM_Certificate_Request). The Sequence field in eOAM_Certificate_Response would tell the OLT if there are more blocks available for retrieval.
I still don’t have a good suggestion on how to inform the recipient of the total size of the incoming file. It needs to be done once at the beginning of transfer and I don’t like the idea of including this field in every message. Making this field present only in the first message in a sequence complicates the parsing.
Should we have a separate message CertificateWriteRequest (similar to FileWriteRequest), where the OLT tells ONU to prepare to receive a file of a given size, and ONU either ACKs or NACKs that request, based on available memory? For the retrieval, the OLT will start with CertificateReadRequest, and the ONU will respond with CrtificateReadResponse containing the total length of the requested certificate?
Glen
From: Marion, Jc <000020b191edabf4-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Tuesday, September 10, 2024 5:11 PM
To: STDS-1904-4-TF@xxxxxxxxxxxxxxxxx
Subject: Re: [1904.4 TF] [**EXTERNAL**] RE: 1904.4 Consensus call
Dear IEEE chatmates,
After our discussion regarding transfer of cert and chain of certs, I realized that we may have an issue with the B1 (or B2) approach.
In short, how do we ensure that the receiver of data (ONU for a install and OLT for a retrieve) is not overflowing its receive buffer?
While we did not come up with actual size estimates for the cert (or chain of), we certainly talked about hundreds of kB.
I believe we need to have a way for the receiver to pace the transmission. Either we introduce a new action code (e.g. transmit ack) or we have another look at the file transfer.
During the call, we looked at it and put it aside for 2 reasons:
- It does not offer the capability to retrieve a file.
- There is no convention for file name. What file name should we use for NAC, DAC?
If we were to revisit the file transfer idea, I believe we would also need to add the indication of total size. So that the receiver of data can prepare a receive buffer or deny the transfer.
Thanks,
Jc
From: stds-1904-4-tf@xxxxxxxxxxxxxxxxx <stds-1904-4-tf@xxxxxxxxxxxxxxxxx> on behalf of Glen Kramer <000006d1020766de-dmarc-request@xxxxxxxxxxxxxxxxx>
Date: Monday, September 9, 2024 at 11:24 AM
To: stds-1904-4-tf@xxxxxxxxxxxxxxxxx <stds-1904-4-tf@xxxxxxxxxxxxxxxxx>
Cc: Hajduczenia, Marek <Marek.Hajduczenia@xxxxxxxxxxx>, Marek Hajduczenia <mxhajduczenia@xxxxxxxxx>, Craig Pratt <c.pratt@xxxxxxxxxxxxx>
Subject: [**EXTERNAL**] RE: 1904.4 Consensus call
Attached is a set of slides for tomorrow. There are 4 alternative methods (plus some options) presented, all different in their capabilities, efficiency, and impact on the draft.
Each method supports certificate chains that are arbitrarily large. However, these methods differ in allowing the individual certificates to be larger than 1489 bytes.
Glen
-----Original Appointment-----
From: Curtis Knittle <C.Knittle@xxxxxxxxxxxxx>
Sent: Monday, September 9, 2024 8:14 AM
To: STDS-1904-4-TF@xxxxxxxxxxxxxxxxx
Cc: Glen Kramer; Hajduczenia, Marek; Marek Hajduczenia; Craig Pratt
Subject: 1904.4 Consensus call
When: Tuesday, September 10, 2024 4:00 PM-5:00 PM (UTC-07:00) Mountain Time (US & Canada).
Where: https://cablelabs.zoom.us/j/91945986243?pwd=RQN8CawUwQEmi4E990LYjt6qYnNHZP.1&from=addon

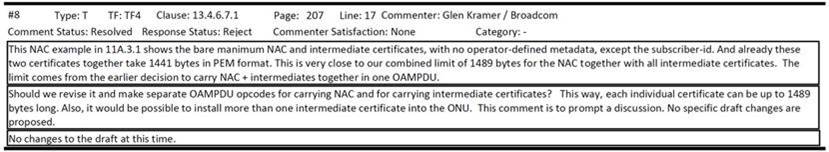

Glen will have a few slides to go over several alternatives for removing the certificate size constraint, as we discussed under comment #8. Zoom info down below.
