答复: RE: Re: Draft v0.3 now available on the website

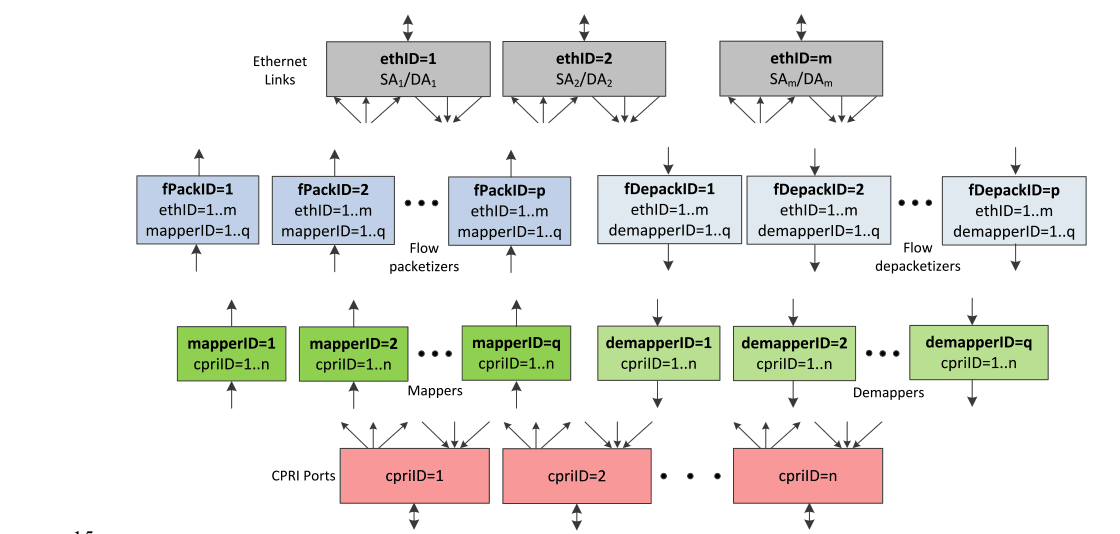

3) If there are many different flows come from a mapper,it's better to modify Figure 4. Are these different flows identified by  flowID which defined in mapper container's parameter?
4) How to describe the relationship between a mapper's flow and an ethernet link's flow? Whether there is such a situation that an ethernet link's flows comes from different mapper

[JiK:] Could you elaborate this a bit further what you mean..

[duchao]  If a mapper's two flows belongs to different ethernet link and the flowID of these two flows are same.

          Then for a packetizer, the parameter fPackID  will not be the same with the flowID in ROE head, So it's better to add a parameter to describe the flowID information.

          And for a container's parameter set,it's better to change the parameter name "flowID" to "fPackID"



Parameter
Bits
Name Default Description
Identifier
8
.fPackID

(.flowID)

0 Each flow packetizer in a given node has a unique identifier. .flowID is generically used to describe the flow from either a mapper to a packetizer and a depacketizer to a demapper.
Encryption
4
.encypt 0 Selects/enables encryption on a given flow. 0x0 is no encryption
Compression
4
.compress 0 Selects/enables compression on a given flow. 0x0 is no compression
Associated Ethernet link
8
.ethID 0 Identifies the destination Ethernet link
Associated mapper
8
.mapperID 0 Identifies the source mapper
Packet length
16
.lenPack 0 Identifies the amount of data to packetize

Mapper Type lenPack units
Simple Tunneling Octets
Structure Agnostic Basic Frames
Structure aware Container sets
Native [///Editor’s note: TEXT HERE

Ordering information See 4.4.5 Ordering information (orderingInfo)


       A single (de)mapper[(de)mapperID].[containerID] parameter set is described as below:
{
        .flowID
        .lenSkip
        .lenContainer
        .modulo
        .index
}

杜超   Du Chao

BBU系统部 / 无线产品经营部   BBU R&D center / Product R&D-Wireless Product Operation

icon logo
深圳市南山区西丽留仙大道中兴通讯工业园研二4楼
4/F,2#Building,ZTE Industrial Park,LiuXian Road,
Nanshan District, Shenzhen, P.R.China, 518055

T
: +86 755 26777423    M: +86 18620318603
E
: du.chao@xxxxxxxxxx
www.zte.com.cn





Jouni Korhonen <jouni.korhonen@xxxxxxxxxxxx>
发件人:  stds-1904-3-tf@xxxxxxxx

2016/01/15 03:48

收件人
"du.chao@xxxxxxxxxx" <du.chao@xxxxxxxxxx>, "stds-1904-3-tf@xxxxxxxx" <stds-1904-3-tf@xxxxxxxx>,
抄送
主题
RE: Re: Draft v0.3 now available on the website





Hi,

Some initial comments inline.

From: du.chao@xxxxxxxxxx [mailto:du.chao@xxxxxxxxxx]
Sent:
Thursday, January 14, 2016 2:00 AM
To:
Michael Johas Teener
Cc:
Glen Kramer; Jouni Korhonen; Marek Hajduczenia; Richard Maiden; stds-1904-3-tf@xxxxxxxx
Subject:
答复: Re: Draft v0.3 now available on the website

Some questions about the draft

1) For a  Ethernet link , there are some different flows, these flows are identified by the flowid in the ROE head. For two flows belonged to different link
the flowid can be same or not
[JiK:] For a different SA/DA pairs the flowIDs can overlap.

2
For a mapper's output ,there are maybe many different flows or only one flow?
[JiK:] A mapper can output multiple flows. For example a flow per AxC.

3) If there are many different flows come from a mapper,it's better to modify Figure 4. Are these different flows identified by  flowID which defined in mapper container's parameter?

4) How to describe the relationship between a mapper's flow and an ethernet link's flow? Whether there is such a situation that an ethernet link's flows comes from different mapper

[JiK:] Could you elaborate this a bit further what you mean..

- Jouni








杜超   Du Chao

BBU系统部 / 无线产品经营部   BBU R&D center / Product R&D-Wireless Product Operation


icon logo
深圳市南山区西丽留仙大道中兴通讯工业园研二4楼

4/F,2#Building,ZTE Industrial Park,LiuXian Road,
Nanshan District, Shenzhen, P.R.China, 518055

T
: +86 755 26777423    M: +86 18620318603
E
: du.chao@xxxxxxxxxx
www.zte.com.cn




Michael Johas Teener <Mikejt@xxxxxxxxxxxx>
发件人
:  stds-1904-3-tf@xxxxxxxx

2016/01/13 15:28


收件人
Glen Kramer <gkramer@xxxxxxxxxxxx>,
抄送
Jouni Korhonen <jouni.korhonen@xxxxxxxxxxxx>, Marek Hajduczenia <marek.hajduczenia@xxxxxxxxx>, Richard Maiden <rmaiden@xxxxxxxxxx>, "stds-1904-3-tf@xxxxxxxx" <stds-1904-3-tf@xxxxxxxx>
主题
Re: Draft v0.3 now available on the website








Discussions on the reflector are useful

--
Michael Johas Teener - Sr. Technical Director, Broadcom Corp

mikejt@xxxxxxxxxxxx / m@xxxxxx - +1-831-824-4228

On Jan 12, 2016, at 11:40, Glen Kramer <
gkramer@xxxxxxxxxxxx> wrote:



What I want is to have the discussion in advance now that the document is “available”. IMHO there is no reason to defer  bringing up issues or ask for clarifications early ? if there are some .


GK: That is fine. You as the TF chair, or the TF altogether, need to decide how to structure this discussion. Do you want people to submit comments? Do you want people to bring it up on conference calls, do you want it to be discussed on the reflector?

Once this is decided, you need to announce it, so that everyone knows how to  participate.


Glen


- Jouni


Once balloting starts, anyone can continue commenting, but the WG members who are in the ballot group also must submit ballots


Glen


From:
Jouni Korhonen
Sent:
Tuesday, January 12, 2016 10:46 AM
To:
Marek Hajduczenia; 'Richard Maiden'; '
stds-1904-3-tf@xxxxxxxx'
Cc:
Glen Kramer
Subject:
RE: Draft v0.3 now available on the website


Hopes are after Feb meeting.. let’s see.


I would not mind seeing those comments already in advance. Discussing issues the early as possible benefits all.


- Jouni


From:
stds-1904-3-tf@xxxxxxxx [mailto:stds-1904-3-tf@xxxxxxxx] On Behalf Of Marek Hajduczenia
Sent:
Monday, January 11, 2016 7:07 AM
To:
'Richard Maiden'; '
stds-1904-3-tf@xxxxxxxx'
Cc:
Glen Kramer
Subject:
RE: Draft v0.3 now available on the website


A quick question ? when is the ballot expected to start? I have a few comments but mostly for clarification, so I assume that broader WG discussion would be need to resolve these.


Marek


From:
stds-1904-3-tf@xxxxxxxx [mailto:stds-1904-3-tf@xxxxxxxx] On Behalf Of Richard Maiden
Sent:
Thursday, January 07, 2016 7:02 PM
To:
stds-1904-3-tf@xxxxxxxx
Cc:
'Glen Kramer' (
gkramer@xxxxxxxxxxxx)
Subject:
Draft v0.3 now available on the website


Hi All,


The v0.3 is now available on the website
here (thanks Glen). All/any comments/suggestions are welcome.

Cheers,


Richard


Richard Maiden

ALTERA (an Intel Company)

101 Innovation Drive

San Jose, CA 95134


Tel:  +1 (949) 382-5402



--------------------------------------------------------
